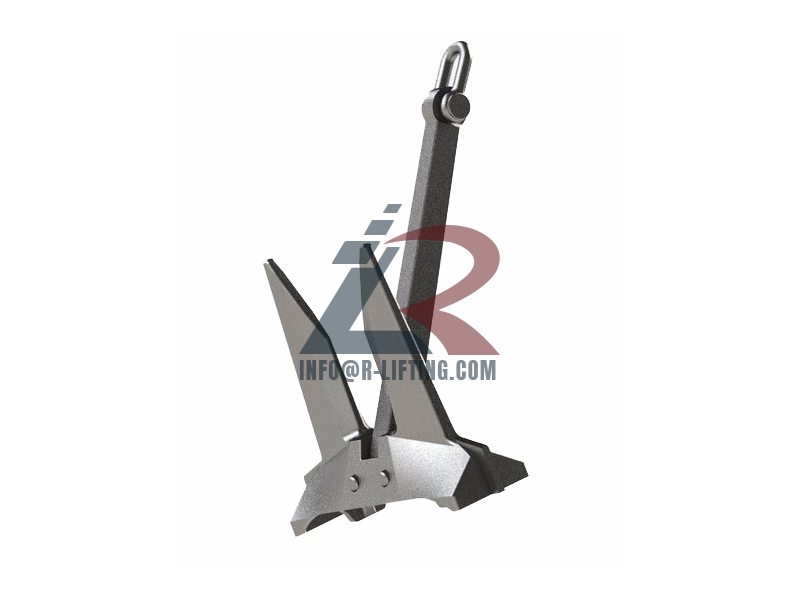

HHP AC14 Anchor

Description

Specifications

Item No	Weight	A	B	C	D	E	F	G	H	Φ
	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm
RL-HHPA8-105	50	590	529	164	107	359	283	80	98	22
RL-HHPA8-106	75	677	605	188	122	411	324	88	115	24
RL-HHPA8-107	90	718	643	199	130	437	344	-	-	-
RL-HHPA8-108	100	745	666	207	135	452	357	88	115	24
RL-HHPA8-109	135	821	737	228	143	500	394	100	130	28
RL-HHPA8-110	180	904	811	251	157	550	434	-	-	-
RL-HHPA8-111	225	974	874	270	169	593	468	125	160	36
RL-HHPA8-112	270	1006	910	278	185	617	488	-	-	-
RL-HHPA8-113	315	1072	962	297	195	653	515	139	175	40
RL-HHPA8-114	340	1109	995	307	192	675	533	-	-	-
RL-HHPA8-115	360	1109	995	307	192	675	553	139	175	40
RL-HHPA8-116	430	1194	1071	331	206	727	574	152	192	45
RL-HHPA8-117	460	1227	1101	340	212	747	590	167	215	48
RL-HHPA8-118	495	1127	1101	340	212	747	590	167	215	48
RL-HHPA8-119	544	1317	1172	363	237	795	627	167	215	48
RL-HHPA8-120	585	1360	1121	378	236	828	654	167	215	48
RL-HHPA8-121	675	1398	1254	387	242	851	672	175	235	50
RL-HHPA8-122	750	1483	1304	404	264	885	698	175	235	50
RL-HHPA8-123	765	1483	1267	391	244	860	679	-	-	-
RL-HHPA8-124	855	1520	1363	423	267	925	729	183	255	50
RL-HHPA8-125	910	1540	1385	427	270	938	740	-	-	-
RL-HHPA8-126	970	1590	1425	440	275	968	764	-	-	-
RL-HHPA8-127	1000	1590	1425	440	275	968	764	183	255	50
RL-HHPA8-128	1080	1590	1425	440	275	968	764	183	255	50
RL-HHPA8-129	1140	1660	1490	460	287	1011	798	-	-	-
RL-HHPA8-130	1195	1660	1490	465	287	1011	798	216	280	62
RL-HHPA8-131	1305	1761	1580	488	305	1072	846	216	280	62
RL-HHPA8-132	1360	1761	1580	488	305	1072	846	-	-	-
RL-HHPA8-133	1440	1795	1610	497	311	1093	862	216	280	62
RL-HHPA8-134	1575	1855	1665	514	321	1130	862	238	310	68
RL-HHPA8-135	1710	1891	1697	524	327	1152	910	-	-	-
RL-HHPA8-136	1820	1940	1741	538	336	1182	933	238	310	68
RL-HHPA8-137	1845	1940	1741	538	336	1182	933	238	310	68
RL-HHPA8-138	1980	1940	1741	538	336	1182	933	238	310	68
RL-HHPA8-139	2040	2016	1809	559	349	1227	969	-	-	-
RL-HHPA8-140	2140	2016	1809	559	349	1227	969	-	-	-
RL-HHPA8-141	2270	2089	1874	579	362	1272	1004	-	-	-
RL-HHPA8-142	2295	2089	1874	579	362	1272	1004	-	-	-
RL-HHPA8-143	2475	2150	1929	596	373	1309	1033	260	340	74
RL-HHPA8-144	2655	2218	1991	615	384	1351	1066	-	-	-
RL-HHPA8-145	2720	2218	1991	615	384	1351	1066	-	-	-
RL-HHPA8-146	2835	2249	2018	623	390	1370	1081	-	-	-
RL-HHPA8-147	3040	2302	2066	638	399	1402	1107	284	360	82
RL-HHPA8-148	3240	2352	2110	652	407	1432	1130	287	380	82
RL-HHPA8-149	3445	2400	2154	665	415	1462	1154	-	-	-
RL-HHPA8-150	3670	2451	2200	680	424	1493	1178	-	-	-
RL-HHPA8-151	3940	2510	2252	696	434	1529	1207	310	385	90
RL-HHPA8-152	4210	2566	2303	711	444	1563	1234	-	-	-
RL-HHPA8-153	4500	2624	2355	727	454	1598	1261	316	410	90
RL-HHPA8-154	4840	2688	2412	745	465	1637	1292	346	415	100
RL-HHPA8-156	5175	2749	2467	762	476	1674	1321	350	450	100
RL-HHPA8-157	5515	2808	2520	778	486	1710	1350	-	-	-
RL-HHPA8-158	5575	2808	2520	778	486	1710	1350	-	-	-
RL-HHPA8-159	5850	2864	2570	794	496	1744	1376	350	450	100
RL-HHPA8-160	6225	2923	2623	810	506	1780	1405	370	480	110
RL-HHPA8-161	6525	2970	2665	823	514	1808	1428	-	-	-
RL-HHPA8-162	6600	2981	2675	827	516	1815	1433	-	-	-
RL-HHPA8-163	6975	3042	2730	843	527	1853	1462	380	500	110
RL-HHPA8-164	7015	3042	2730	843	527	1853	1462	-	-	-
RL-HHPA8-165	7425	3100	2782	859	537	1888	1490	-	-	-
RL-HHPA8-166	7875	3162	2837	876	547	1925	1520	380	500	110
RL-HHPA8-167	8325	3221	2890	893	558	1961	1548	400	540	117
RL-HHPA8-168	8775	3278	2942	909	567	1996	1576	400	540	117
RL-HHPA8-169	9225	33333	2991	924	577	2030	1602	-	-	-
RL-HHPA8-170	9675	3386	3039	939	586	2062	1628	421	580	124
RL-HHPA8-171	10125	3438	3085	953	595	2094	1653	-	-	-
RL-HHPA8-172	10575	3488	3130	967	604	2124	1677	-	-	-
RL-HHPA8-173	10695	3501	3141	970	606	2132	1683	-	-	-
RL-HHPA8-174	11025	3537	3174	981	612	2154	1700	-	-	-
RL-HHPA8-175	11250	3561	3196	987	616	2169	1712	-	-	-
RL-HHPA8-176	11550	3592	3224	996	622	2188	1727	452	620	135
RL-HHPA8-177	11850	3623	3251	1004	627	2206	1742	-	-	-
RL-HHPA8-178	12075	3646	3272	1011	631	2220	1753	452	620	135
RL-HHPA8-179	12525	3691	3312	1023	639	2248	1774	-	-	-
RL-HHPA8-180	12675	3705	3325	1027	641	2256	1781	468	648	148
RL-HHPA8-181	13200	3756	3370	1041	650	2287	1805	-	-	-
RL-HHPA8-182	13350	3770	3383	1045	653	2296	1812	-	-	-
RL-HHPA8-183	13875	3819	3426	1059	661	2326	1836	-	-	-
RL-HHPA8-184	14100	3839	345	1064	665	2338	1846	-	-	-
RL-HHPA8-185	15000	3919	3517	1086	678	2387	1884	-	-	-
RL-HHPA8-186	16125	4015	3603	1113	695	2445	1930	-	-	-
RL-HHPA8-187	17250	4106	3685	1138	711	2501	1974	-	-	-
RL-HHPA8-188	18375	4194	3763	1163	726	2554	2016	-	-	-
RL-HHPA8-189	19500	4278	3839	1186	740	2605	2056	534	730	760
RL-HHPA8-190	21750	4366	3956	1210	800	2685	2132	611	820	185
RL-HHPA8-191	24750	2150	1929	596	373	1309	1033	260	340	740
