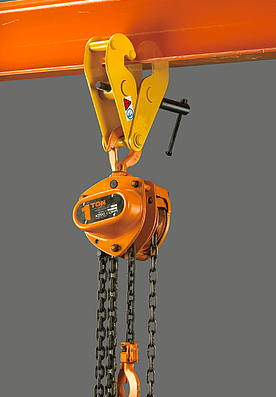

YC ‘Standard’ Beam Clamp provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads and comes complete with a locking device, it is ideal for affixing hoists, pulleys and loads. The unit offers flexible applications, due to the wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip to the beam flange.
Products Introduction
Features:

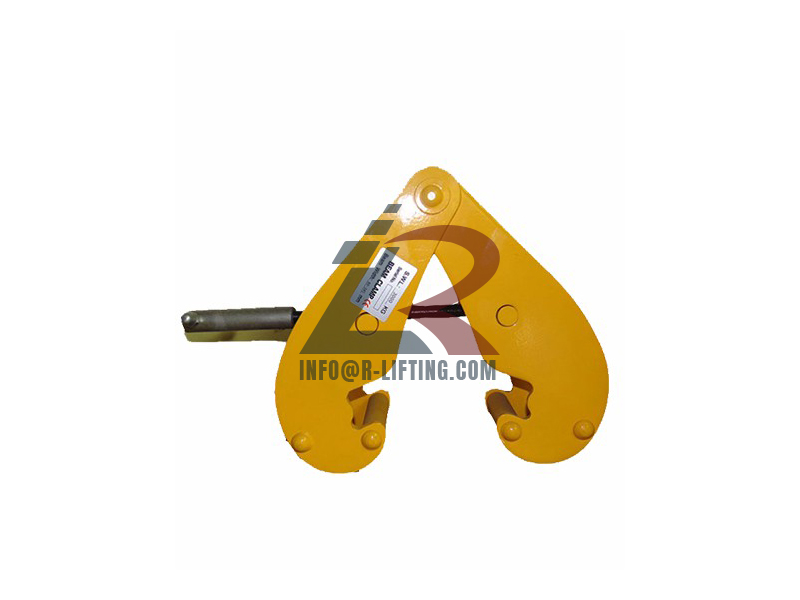

Beam clamp model YC
Working Load Limited (WLL): 1-10T
Flexible application based on wide adjustment range.
The spindle can be secured against loosening.
Option, small dimensions for applications at beams with low base height.
Overload is prohibited.
Specifications
| Item No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
|---|---|---|---|---|
| RL-YC6-107 | YC1 | 1 | 75-220 | 3.8 |
| RL-YC6-108 | YC2 | 2 | 75-220 | 4.6 |
| RL-YC6-109 | YC3 | 3 | 80-320 | 9 |
| RL-YC6-110 | YC5 | 5 | 80-320 | 11 |
| RL-YC6-111 | YC10 | 10 | 90-320 | 16 |
