Specifications

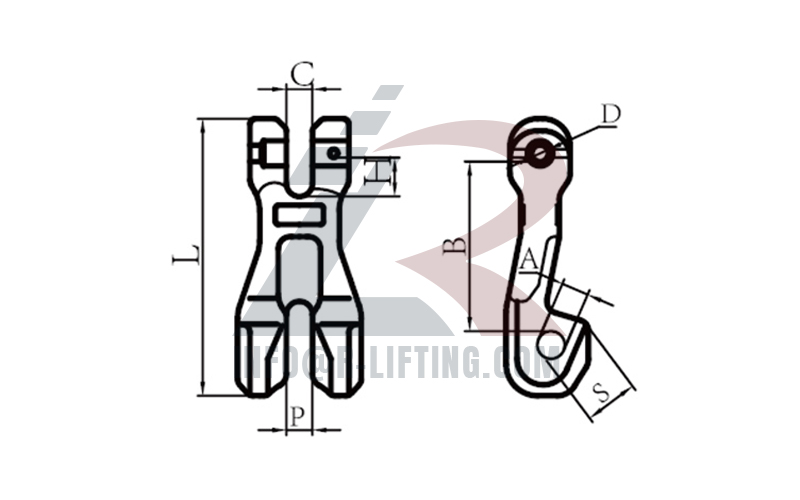

| G80 CLEVIS CLUTCH | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM NO | SIZE | WEIGHT | WLL | B.L | P | C | A | B | H | S | L | D |
| MM | KG/PC | TON | TON | MM | MM | MM | MM | MM | MM | MM | MM | |
| RL-CC5-211 | 6 | 0.17 | 1.12 | 4.48 | 7.5 | 7.5 | 8 | 44 | 10.3 | 12 | 73.5 | 7.8 |
| RL-CC5-212 | 7/8 | 0.37 | 2 | 8 | 9.5 | 9.5 | 10.5 | 61.7 | 14 | 17 | 101 | 9.2 |
| RL-CC5-213 | 10 | 0.97 | 3.15 | 12.6 | 13 | 13 | 12.4 | 92 | 18.4 | 28 | 138 | 13.2 |
| RL-CC5-214 | 13 | 2.01 | 5.3 | 21.2 | 16.5 | 16.5 | 16 | 115 | 22.7 | 34.5 | 177 | 16.2 |
| RL-CC5-215 | 16 | 3.32 | 8 | 32 | 21 | 21 | 19.5 | 143 | 28.5 | 40 | 220 | 20 |
| RL-CC5-216 | 20 | 6.2 | 12.5 | 50 | 23.5 | 23.5 | 23 | 152 | 33.6 | 46 | 238 | 24.3 |
| RL-CC5-217 | 22 | 8.5 | 15 | 60 | 25.5 | 25.5 | 26 | 195 | 39 | 57.5 | 295 | 28.1 |
