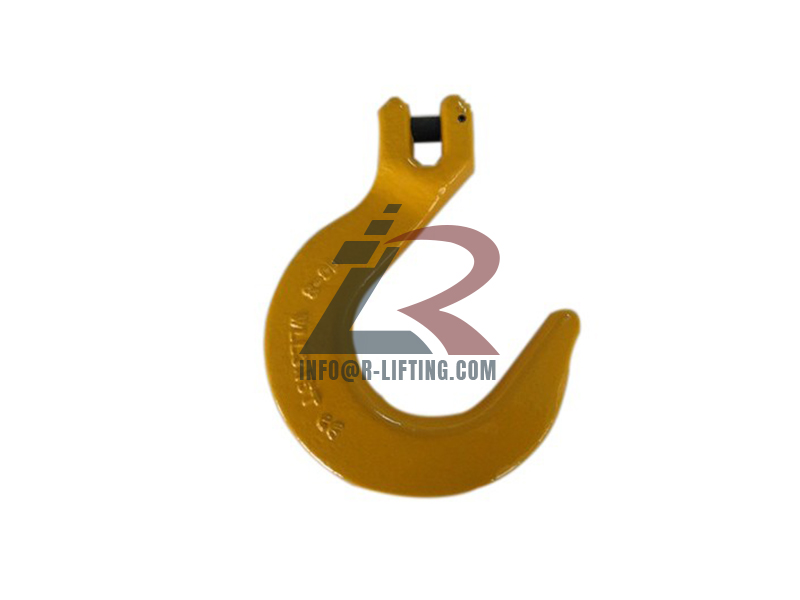

G80 Clevis Foundry Hooks are a special purpose hook with large mouth opening, the clevis allows easy connection to the chain. Clevis Foundry Hooks are not provided with a safety valve. Before using this hook, check whether hooks without safety latches are allowed for your particular application.
Product Features:
• Forged Super Alloy Steel.
• Quenched & Tempered.
• Standard grade 80 component.
• Mainly used at foundries.
Specifications
| G80 CLEVIS FOUNDRY HOOK | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM NO | SIZE | WEIGHT | WLL | B.L | DIMENSIONS(MM) | |||||||
| MM | KG/PC | TON | TON | A | B | E | M | L | C | N | H | |
| RL-CFH5-58 | 7/8 | 1.1 | 2 | 8 | 9.5 | 37 | 63.4 | 128 | 161 | 18 | 18 | 31 |
| RL-CFH5-59 | 10 | 2.5 | 3.15 | 12.6 | 13 | 49 | 76.9 | 156 | 199 | 23 | 32 | 38 |
| RL-CFH5-60 | 13 | 2 | 5.3 | 21.2 | 15.5 | 49.5 | 74 | 153.75 | 212.6 | |||
